Custom Titanium and titanium alloy thick plate Manufacturers, Factory

Grade: GR1,GR2, GR7,GR12

Standards: ASTM B265

Specifications: Î´(12mm-75mm)*W(1500-2500mm)*L(1000-12,000mm)

Custom request size is avaliable.

Send Inquiry

Product Description

Products Details

Titanium material is popular in industrial materials because it has a service life of 5-8 times that of ordinary stainless steel under the same working conditions, but its density is only 60% of that of steel, which significantly reduces the dead weight of the equipment, and it is also resistant to extreme environments, and it can withstand temperatures in the range of -196℃ to 600℃.

1. Chemical Composition & Mechanical Properties for Pure Titanium

Grade	Chemical Composition (%)							Mechanical Properties
Grade	Fe	C	N	H	O	Each	Total	Tensile Strength	Yield Strength	Elongation %
GR1	≤0.25	≤0.10	≤0.03	≤0.015	≤0.20	≤0.10	≤0.40	≥240	140-310	≥30
GR2	≤0.30	≤0.10	≤0.05	≤0.015	≤0.25	≤0.10	≤0.40	≥400	275-450	≥25

2. Chemical Composition & Mechanical Properties for Alloy Titanium

Grade	Chemical Composition (%)									Mechanical Properties
Grade	Mo/Pd	Ni	Fe	C	N	H	O	Each	Total	Tensile Strength	Yield Strength	Elongation %
GR12	0.2-0.4 (Mo)	0.6-0.9	≤0.30	≤0.08	≤0.30	≤0.015	≤0.25	≤0.10	≤0.40	≥345	≥275	≥25
GR7	0.12-0.25 (Pd)	-	≤0.30	≤0.08	≤0.03	≤0.015	≤0.25	≤0.10	≤0.40	≥400	275-450	≥20

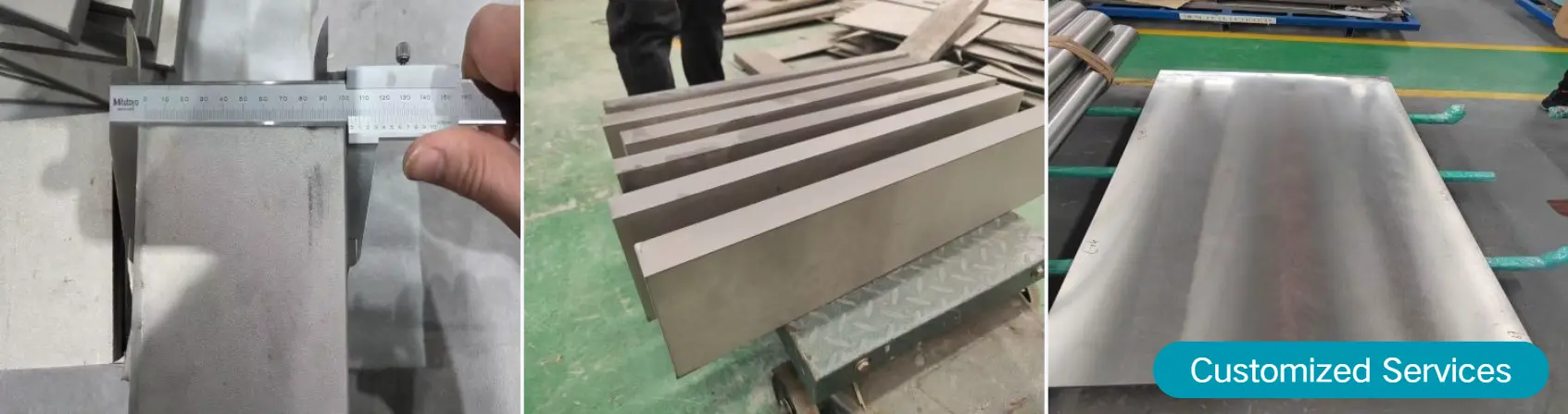

Customized Services

📍 Custom Cutting
We offer laser cutting, plasma cutting, waterjet cutting, and precision shearing services. Materials are delivered ready for immediate use with guaranteed precision, effectively shortening project timelines.

📍 Custom Widths
We provide specifications tailored to your exact width and length requirements, meeting all your project specifications.

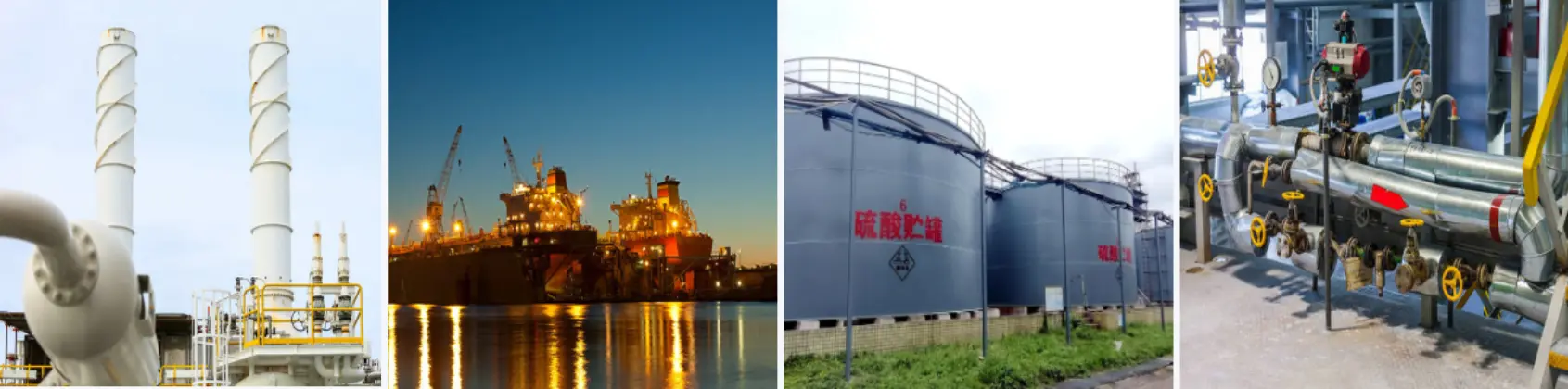

Application

The different grades of titanium wide plate for application:

Grade 1 (GR1): Basic industrial pure titanium material; Excellent corrosion resistance; Medium strength (≥ 240MPa). Suitable for chemical equipment manufacturing.

Grade 2 (GR2): High purity industrial titanium (purity ≥99.6%); Perfect balance of corrosion resistance, strength (≥345MPa) and workability. Applied in Shipbuilding, petrochemical equipment and electronics.

Grade 7 (GR7): Enhanced palladium alloy; 300% higher corrosion resistance to reducing acids. Suitable for strong acid environments (pH 1-3) in the chemical industry.

Grade 12 (GR12): Molybdenum Nickel Reinforced; Tensile Strength ≥483MPa; Seawater Corrosion Resistance is 10 times that of stainless steel. Ideal for offshore oil platforms.

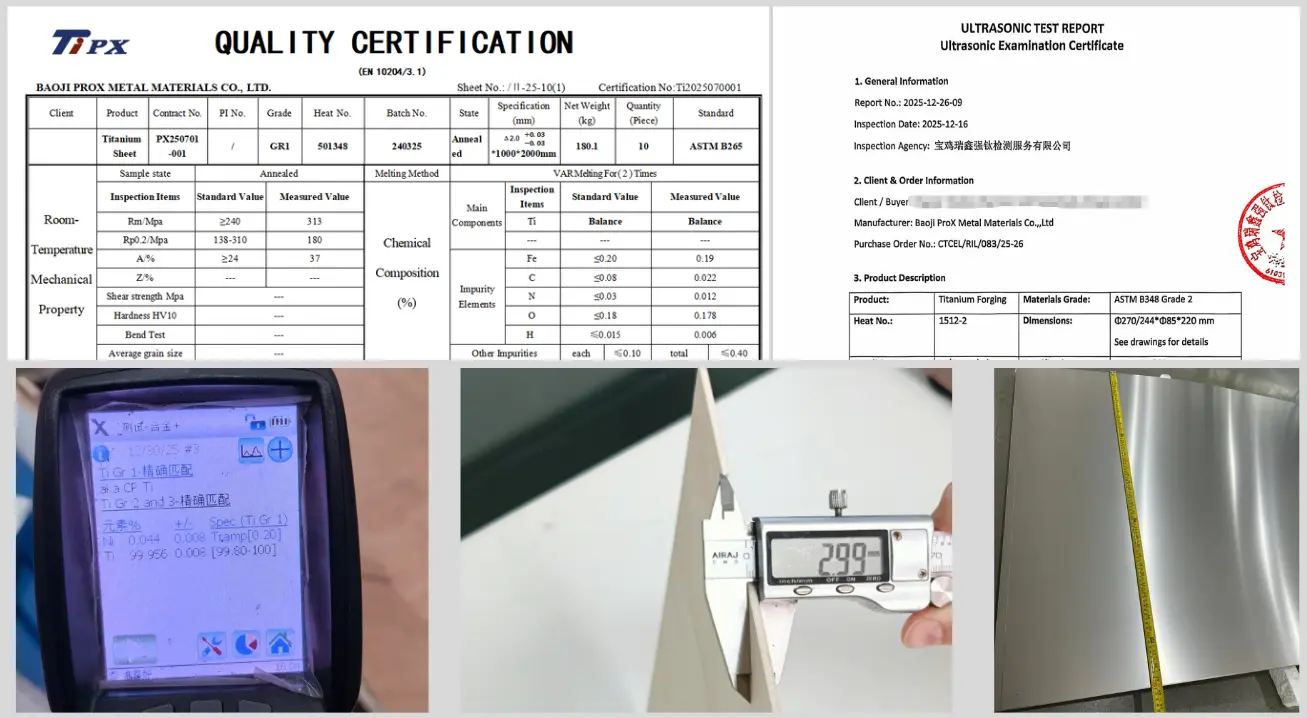

Inspection and Test Reports

100% inspection and 100% compliance with the ASTM B265 standard.

100% composition compliance: Laboratory analysis at the ingot stage.
100% performance verified: Tensile testing for strength and ductility.
100% internal integrity: Ultrasonic testing (UT) performed on the entire plate.
100% dimensional accuracy: Strict compliance with thickness, flatness and tolerances.

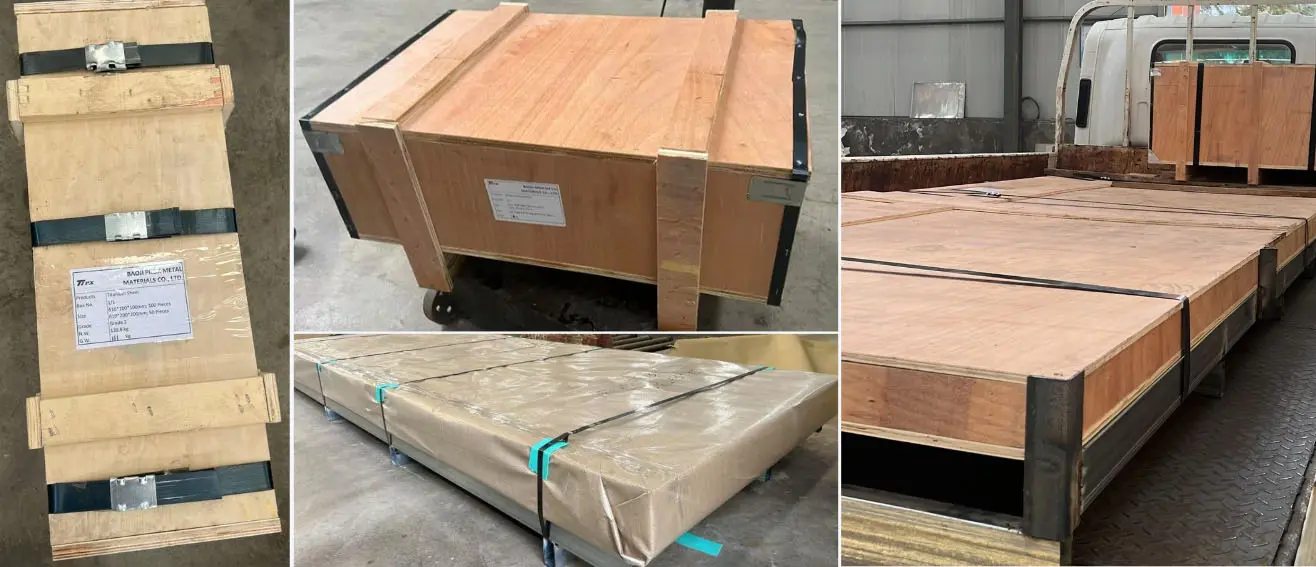

Packaging & Shipping

Titanium sheets and plates are packed in plywood cases to avoid damage during storage or transportation. Clear labels are attached for easy identification of product and quality information.

Shipping Methods

🚢 Sea freight: CIF to port or FOB domestic port. (15-45 days)

✈️ Air freight: Airport-to-airport or Door-to-door express. (5-10 days)

🚆 Rail transport: FCA delivery to major hubs in Europe, Russia, and Central Asia. (7-25 days)

We are a reliable partner committed to the production of cost-effective titanium and titanium alloy materials. Our production range includes pure and alloyed titanium sheets, rods, tubes, wire, forgings and machined products.

Product Categories

TITANIUM SHEET/PLATE TITANIUM BAR/RODS TITANIUM WIRE TITANIUM TUBE/PIPE TITANIUM FOIL TITANIUM BLOCK TITANIUM BILLET TITANIUM PROFILE MACHINED PRODUCTS

Frequently Asked Questions

Q1: Why choose titanium over stainless steel for industrial use?

Titanium offers a service life 5-8 times longer than stainless steel under similar conditions, with only 60% of the density. It also withstands extreme temperatures from -196℃ to 600℃.

Q2: What is the difference between Grade 1 and Grade 2 titanium?

Grade 1 is the most ductile and softest grade with excellent corrosion resistance. Grade 2 is widely used for its balanced strength, ductility, and weldability.

Q3: Do your products comply with international standards?

Yes, all products undergo 100% inspection and strictly comply with the ASTM B265 international standard for titanium and titanium alloy materials.

Q4: What kind of testing do you perform before shipping?

We perform chemical composition analysis, tensile testing, ultrasonic testing (UT), hardness testing, and grain size rating to ensure 100% material integrity.

Q5: Can you provide custom sizes for titanium plates?

Yes, we offer professional cutting services including laser, waterjet, and plasma cutting to meet your specific width, length, and precision requirements.

Q6: What are the typical delivery times for international shipping?

Air freight takes 5-10 days, rail transport to Europe takes 12-25 days, and sea freight typically takes between 15 and 45 days depending on the destination port.
