Our GR1, GR2 titanium coils and strips are categorised into the following types according to the surface treatment:

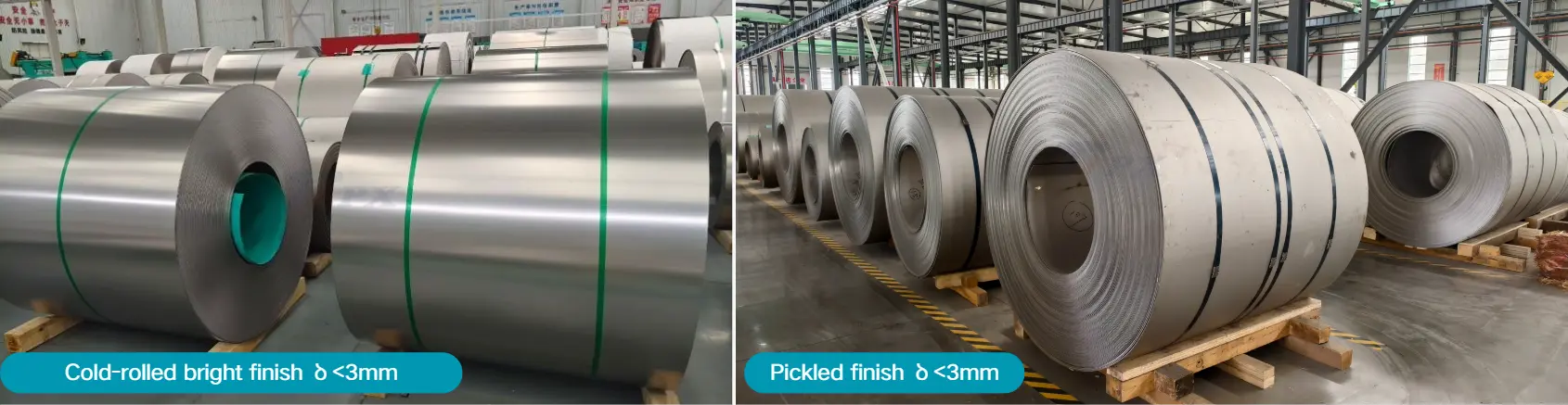

Cold rolled GR1, GR2 pure titanium coils: Pickled surface. Thickness range 2.0mm - 3.0mm.
Cold-rolled industrial titanium coils: Bright surface. Thickness range 0.5mm - 3.0mm.
Hot rolled titanium coils sheet: Pickled surface. Thickness range 3.0mm - 12.0mm.
Pure titanium coil sheet: Black oxide-covered surface. Thickness < 8mm.
Chemical Composition & Mechanical Properties for Pure titanium coil sheet
| Grade | Chemical Composition (%) | Mechanical Properties | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Fe | C | N | H | O | Each | Total | Tensile Strength | Yield Strength | Elongation % | |
| GR1 | ≤0.25 | ≤0.10 | ≤0.03 | ≤0.015 | ≤0.20 | ≤0.10 | ≤0.40 | ≥240 | 140-310 | ≥30 |
| GR2 | ≤0.30 | ≤0.10 | ≤0.05 | ≤0.015 | ≤0.25 | ≤0.10 | ≤0.40 | ≥400 | 275-450 | ≥25 |
Product Supply Condition: Annealed (M), Semi-Hard (Y2), Hard (Y)

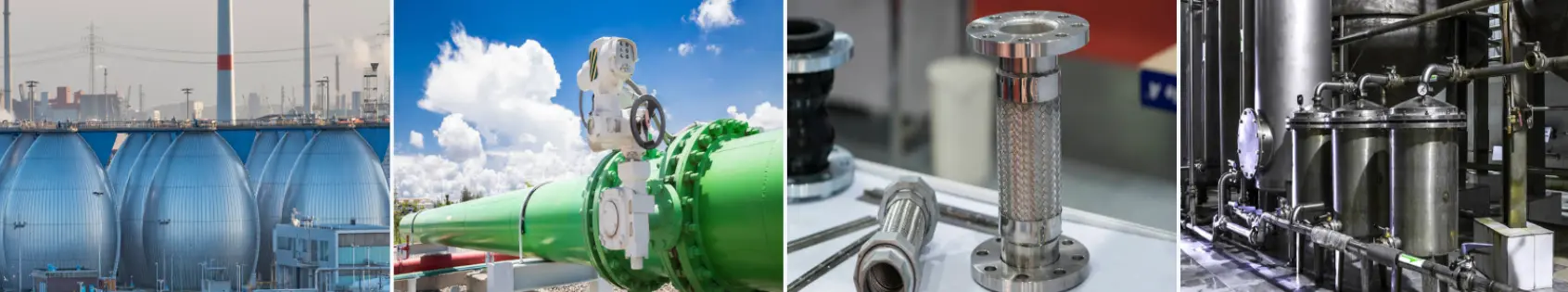

🚀 Industrial Equipment: Reaction vessels, tower linings (PTA, acetic acid), heat exchanger plates, and corrosion-resistant pipes.
âš¡ Power & Energy: Flue gas desulfurization systems, seawater cooling condensers, and hydrogen fuel cell plates.
âš“ Marine Engineering: Desalination plants, ship piping systems, and offshore platform structures.
🌿 Environmental Protection: Wastewater treatment tanks and special corrosion-resistant industrial components.
Excellent Corrosion Resistance: Maintains high stability against acids, alkalis, and salts, extending equipment service life.
High Strength & Low Weight: Low density provides lightweight advantages while maintaining structural integrity under force.
Good Processing Performance: Suitable for stamping, bending, and welding to meet various manufacturing requirements.
| Surface Condition | Gloss Level | Roughness | Corrosion Resistance | Cost | Applications |
|---|---|---|---|---|---|
| Cold Rolled Bright | High (Mirror) | Ra≤0.4μm | Excellent | High | Medical devices, decor |
| Cold Rolled Pickled | Low (Matte) | Ra 0.6~1.2μm | Very Good | Medium | Chemical equipment |
| Hot Rolled Pickled | None (Dark Gray) | Ra 1.5~3.0μm | Good | Low | Structural parts |
| Black Oxide-Covered | None (Black) | Process-Dependent | Excellent | Medium-High | Optics, Military |
A: We primarily offer GR1 and GR2 pure titanium coils, which are ideal for industrial and chemical applications due to their balance of strength and corrosion resistance.
A: Bright surfaces offer a mirror-like finish with very low roughness (Ra≤0.4μm), while pickled surfaces have a matte finish suitable for industrial applications where aesthetics are less critical than functionality.
A: Yes, titanium is highly resistant to seawater corrosion, making it a preferred material for marine engineering, desalination plants, and offshore platforms.
A: Cold-rolled coils range from 0.5mm to 3.0mm, while hot-rolled coils are available from 3.0mm up to 12.0mm in thickness.
A: Titanium coils possess good processing performance, allowing for various operations such as stamping, bending, and welding to fit custom project designs.
A: Its extreme resistance to corrosive flue gases and sulfuric acid environments ensures a long lifespan for absorption towers and flue linings in power plants.
