Products Details
Industrial titanium forgings are metal parts made of high-purity titanium and titanium alloys (Gr1, Gr2, Gr5, Gr7) through advanced processes such as free forging, drop forging and isothermal forging. With high strength, corrosion resistance, light weight and excellent fatigue performance, these titanium forgings are widely used in the fields of chemical energy, marine engineering, medical equipment, etc. This material is an ideal choice for high-end equipment manufacturing.
Common Grades and Applications
| Grade |
Performances |
Application |
| Gr1 |
High plasticity, corrosion resistance, suitable for low corrosive environments. |
Chemical piping, desalination plant. |
| Gr2 |
Excellent overall performance and cost effectiveness. |
Reactor flange, ship shaft system. |
| Gr5 |
High strength and high temperature resistance, suitable for extreme working conditions. |
Deep sea pressure resistant hull. |
| Gr7 |
Resistant to concentrated acid corrosion, suitable for strong acid environments. |
Hydrochloric acid storage tank, flue gas desulphurisation plant. |
| Gr12 |
High temperature and corrosion resistance, suitable for complex fluids. |
Chemical reactor, LNG storage tank. |
| Ti-6Al-4V ELI/Gr23 |
Ultra-high strength and toughness, suitable for deep sea high pressure environment. |
Deep sea probe, spacecraft structure. |
Common Specifications
| Products |
Diameter Range |
Tolerance |
| Open Die Forging |
Φ50mm~Φ2000m; Length ≤ 5000mm |
±1.5mm (Precision machining on request) |
| Die Forging |
Φ20mm~Φ1000mm; Thick: 10mm~300mm |
±0.5mm (High Precision) |
| Isothermal Forging |
Φ100mm~Φ1500mm; Thick: 20mm~500mm |
±0.2mm (Ultra-high precision) |

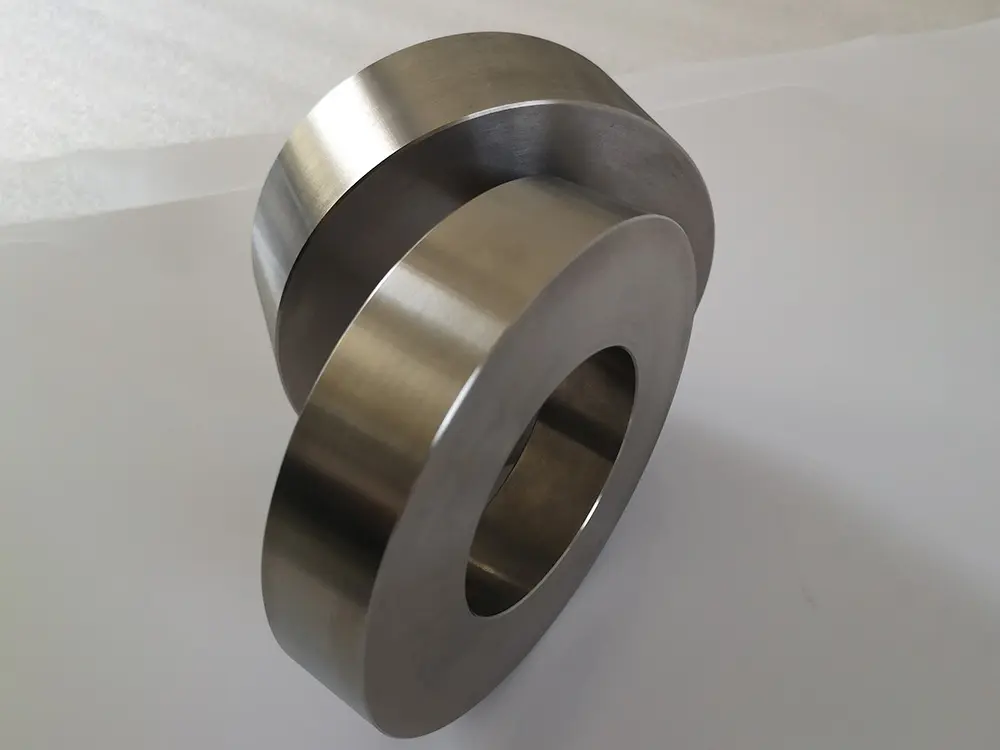

| Ring Forgings |
Φ200mm~Φ5000mm; Thick: 10mm~300mm |
±1.0mm (Seamless ring structure) |
Technical Parameters and Customised Services
| Performances |
Gr2 Titanium Forgings |
Gr5 Ti64 Forgings |
Gr7 Ti-Pd Forgings |
Gr12 Ti-Mo Forgings |
| Tensile strength |
450-600 MPa |
895-1034 MPa |
450-980MPa |
485-620 MPa |
| Work Temperature |
-250°C ~ 350°C |
-250°C ~ 600°C |
-250°C ~ 540°C |
-200°C ~ 600°C |
| Work Condition |
Weak acid, seawater. |
Deep sea, high pressure, high temperature. |
Corrosion resistance. |
Concentrated hydrochloric acid, sulphuric acid. |
Titanium Forgings in Chemical and Marine Engineering
Titanium forgings have demonstrated outstanding performance in the chemical energy and offshore sectors, with significant improvements in efficiency, safety and economy. These include resistance to extreme corrosion (e.g. 70% sulphuric acid resistance, lifetime protection against seawater), high temperature and high pressure stability (Gr5 titanium alloy retains high strength at 300°C / 6,000 metres depth) and efficient machining capabilities.
In chemical applications, titanium forgings are used in reactors, electrolysis tanks and other equipment, reducing maintenance costs by 70% and extending service life to 30 years; in marine engineering, its anti-bio-adhesion and deep-sea pressure properties support desalination units, deep-sea submersibles and other key components, extending the life of oil platforms to more than 50 years and reducing weight by 25%.
Why Choose Our Solutions?
✔️
Source control: Using high quality 0A Grade 2 titanium sponge raw materials, free melting, from raw materials to ensure quality.
✔️
Full process support: Free anti-corrosion design, welding process guidance, fatigue life simulation report.
✔️
Quick delivery: 72 hours delivery for regular specifications, ≤ 25 days for oversized custom cycle.
✔️
Customised service: Specialized production tailored to your specific requirements and technical drawings.
View All Titanium Products
Titanium Sheet/Plate
Titanium Bar/Rods
Titanium Wire
Titanium Tube/Pipe
Titanum Foil
Titanium Block
Titanium Billet
Titanium Profile
Machined Products
Frequently Asked Questions (FAQ)
What are the primary benefits of using titanium forgings over other metals?
Titanium forgings offer a superior strength-to-weight ratio, exceptional corrosion resistance (especially in seawater and acids), and the ability to withstand extreme temperatures and high-pressure environments.
Which titanium grade is best for deep-sea applications?
Gr5 (Ti-6Al-4V) and Gr23 (ELI) are the preferred choices for deep-sea applications due to their high tensile strength and ability to maintain structural integrity under extreme high-pressure conditions.
Do you offer customization for non-standard sizes?
Yes, we specialize in customized production. We can manufacture titanium forgings, including rings and blocks, to your specific dimensions and tolerance requirements.
What is the typical lead time for custom titanium forgings?
Regular specifications can be delivered within 72 hours, while oversized or complex custom projects typically have a production cycle of 25 days or less.
How do titanium forgings perform in concentrated acid environments?
Gr7 (Ti-Pd) and Gr12 (Ti-Mo) are specifically designed for high-corrosion environments, offering excellent resistance to concentrated hydrochloric and sulphuric acids.
What quality control measures are implemented during production?
Quality is ensured starting from the source using 0A Grade 2 titanium sponge, followed by precise melting and forging processes, including fatigue life simulations and technical reporting.
