The main advantages of titanium foils (GR1/GR2) are corrosion resistance, light weight and electrical conductivity, and they are mainly used in the chemical industry, electronics, new energy, automotive and marine engineering, etc. GR1 is suitable for high forming requirements suitable for deep stamping, complex shapes of chemical containers or electronic components, and GR2 is suitable for scenarios with slightly higher strength requirements, such as automotive parts, marine engineering.
Unalloyed titanium foil (GR1/GR2) specifications:
In compliance with ASTM B265 standards.
1. Chemical and Anticorrosion Field
Used in reactor linings, heat exchangers, and corrosive media resistance (such as chlor-alkali industry).
2. Electronics and New Energy
Battery collectors for lithium-ion and fuel cells; EMI shielding for precision instruments.
3. Automotive and Marine Engineering
Exhaust liners, lightweight racing components, and seawater-resistant pump valves.
| Item | Titanium Foil | Stainless Steel Foil | Advantage Comparison |
|---|---|---|---|
| Density | 4.51g/cm³ | 7.93g/cm³ | ~43% lighter, ideal for lightweight design. |
| Corrosion Resistance | Excellent (Acid/Alkali/Salt) | Susceptible to strong acids | Performs better in extreme environments. |
| High-temp Performance | Stable at 500°C | Deforms above 300°C | Higher thermal stability. |
| Strength | ≥240MPa | ≥520MPa (304 SS) | Titanium has better strength-to-weight ratio. |
100% compliance with the ASTM B265 standard.

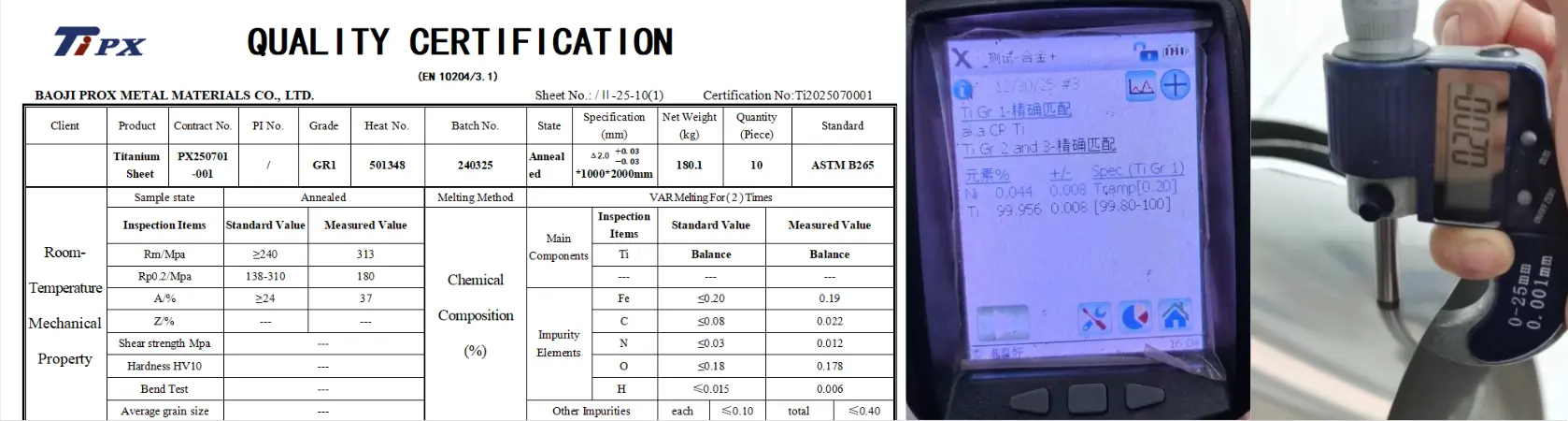

Every pure titanium foil strip delivered undergoes rigorous inspection.
Reports provided before shipping:

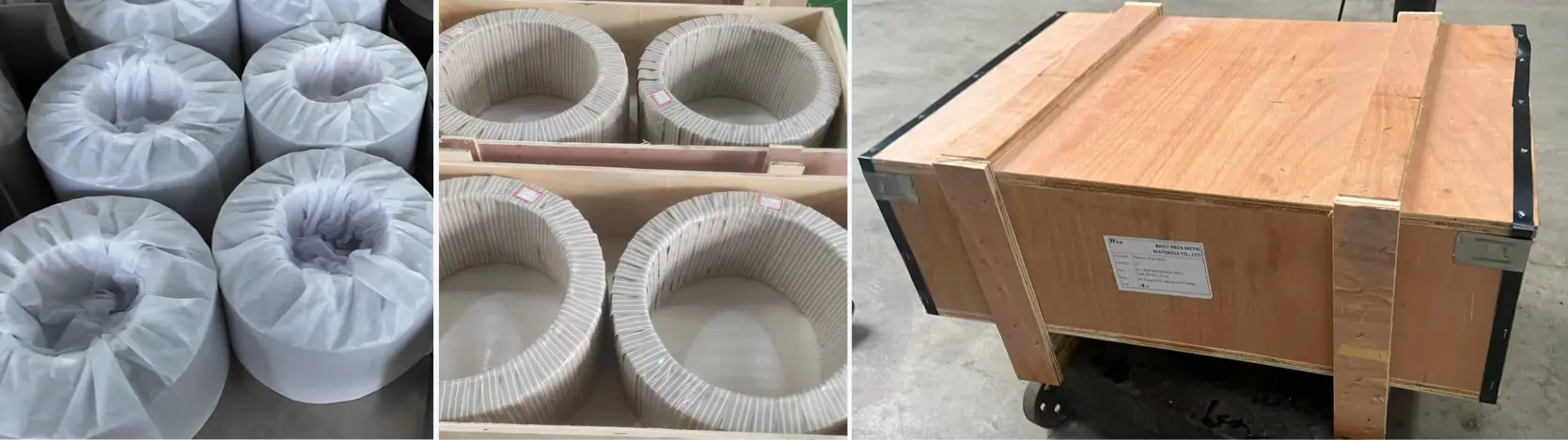

Products are packed in plywood cases to avoid damage during transportation. Clear labels are attached for easy identification.
A: We primarily provide Grade 1 (GR1) and Grade 2 (GR2) pure titanium foils, which offer excellent corrosion resistance and formability.
A: We can produce high-precision titanium foil with a thickness starting from as low as 0.005 mm.
A: Yes, all our titanium materials are 100% compliant with the ASTM B265 international standard and come with material test certificates.
A: Titanium is 43% lighter, has superior corrosion resistance in acids and salts, and maintains better stability at high temperatures up to 500°C.

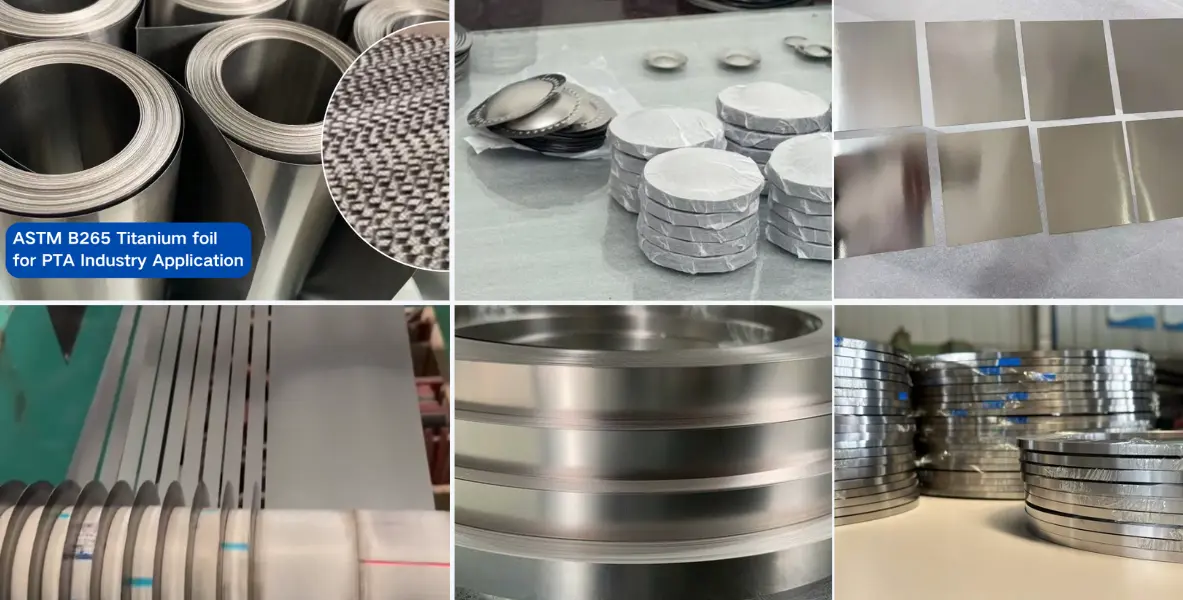

A: Yes, we offer precision slitting to specific widths (10-400mm) and custom laser or die-cutting based on your technical drawings.
A: We provide an EN10204 3.1 Material Certificate, chemical composition analysis, mechanical property reports, and dimensional tolerance reports.
