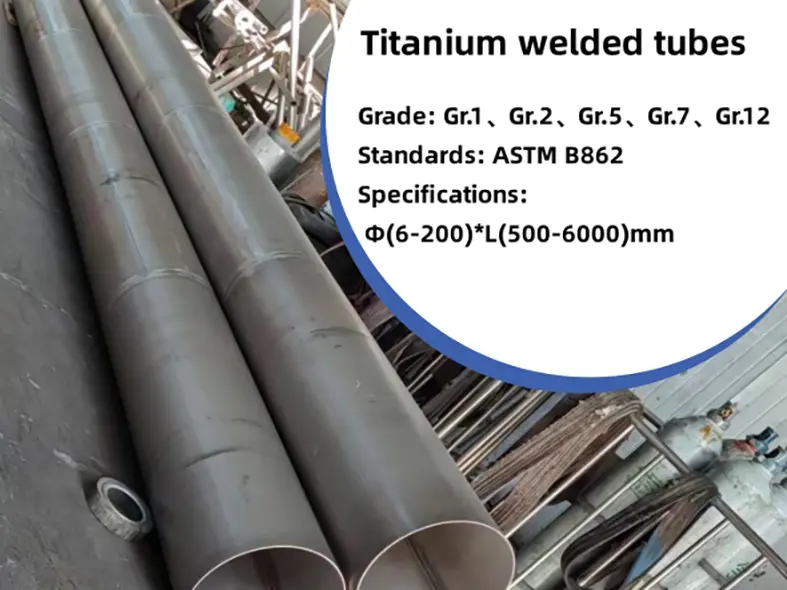

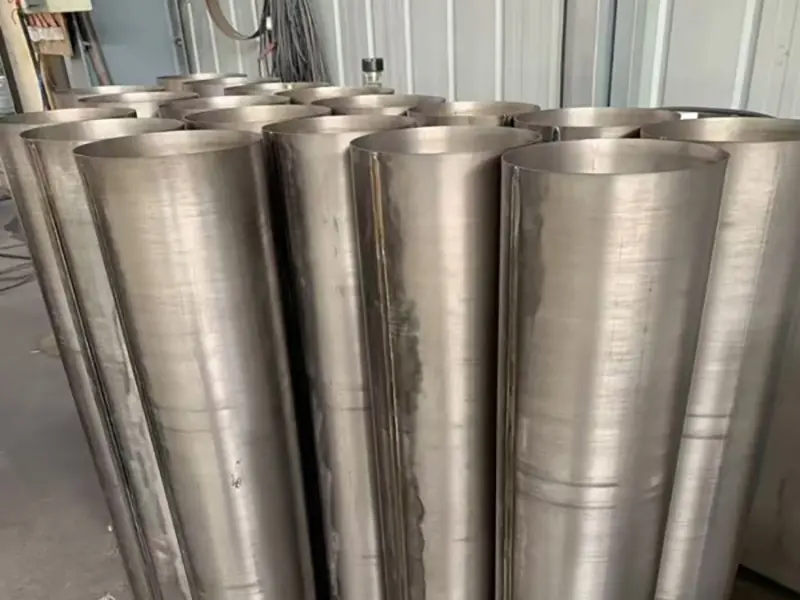

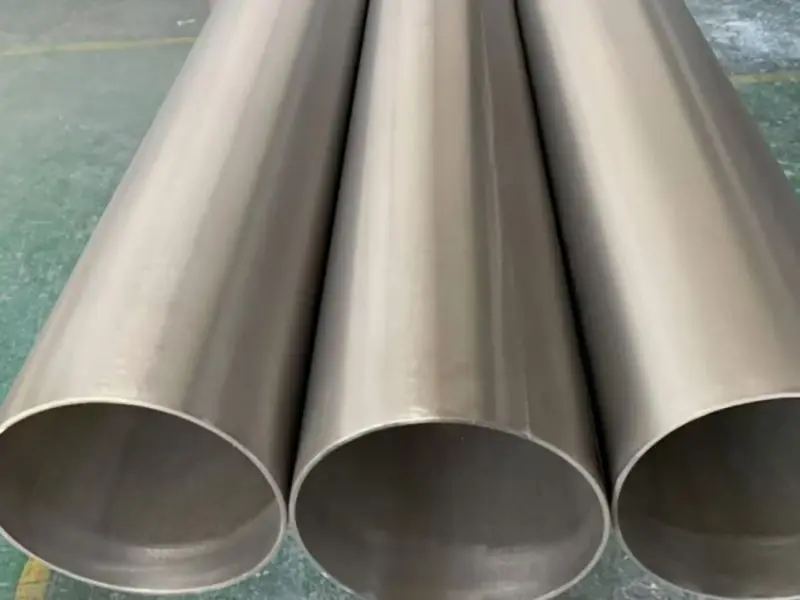

Seamless and welded titanium tubes, including pure and alloyed titanium tubes, are manufactured to provide exceptional performance. Titanium tube products feature corrosion resistance, light weight, high strength, and high temperature resistance.
Welding is performed on pure titanium and titanium alloy plates through cutting, bending, and other processes to form a tube, followed by welded assembly. This production method offers a relatively low cost and is suitable for general industrial fields with standard performance requirements.
A wide range of grades, outside diameters, and wall thicknesses for welded titanium tubing are available to meet diverse industrial needs.
| Grade | State | Out-diameter (mm) | Produced wall thicknesses (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 0.5 | 0.6 | 0.8 | 1 | 1.25 | 1.5 | 2 | 2.5 | |||
| Gr.1, Gr.2, Gr.5, Gr.7, Gr.12 | Annealed | 16 | ✓ | ✓ | ✓ | ✓ | — | — | — | — |
| 19 | ✓ | ✓ | ✓ | ✓ | ✓ | — | — | — | ||
| 25, 27 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | — | — | ||
| 31, 32, 33 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | — | ||
| 38 | — | — | — | — | — | ✓ | ✓ | ✓ | ||
| 50 | — | — | — | — | — | — | ✓ | ✓ | ||
| 63 | — | — | — | — | — | — | ✓ | ✓ | ||
* (✓) Indicates the specifications that can be produced.
Used in the manufacture of corrosion-resistant reactors, heat exchangers, and piping systems for the chemical industry. Also essential for desalination plants, offshore platforms, and ship components in marine environments, as well as condensers in nuclear power plants.
Ideal for chemical and marine engineering, heat exchangers, and reactor piping. These tubes are also used in nuclear fuel storage components and high-pressure corrosion-resistant piping for geothermal or oil and gas extraction.
Designed for strong corrosion resistance in acid and alkali media within chemical and petrochemical engineering. These grades are also utilized in high-temperature heat exchangers and specialized piping systems.
Commitment to providing high-quality industrial titanium tubing products and professional services ensures support for your specific projects.
